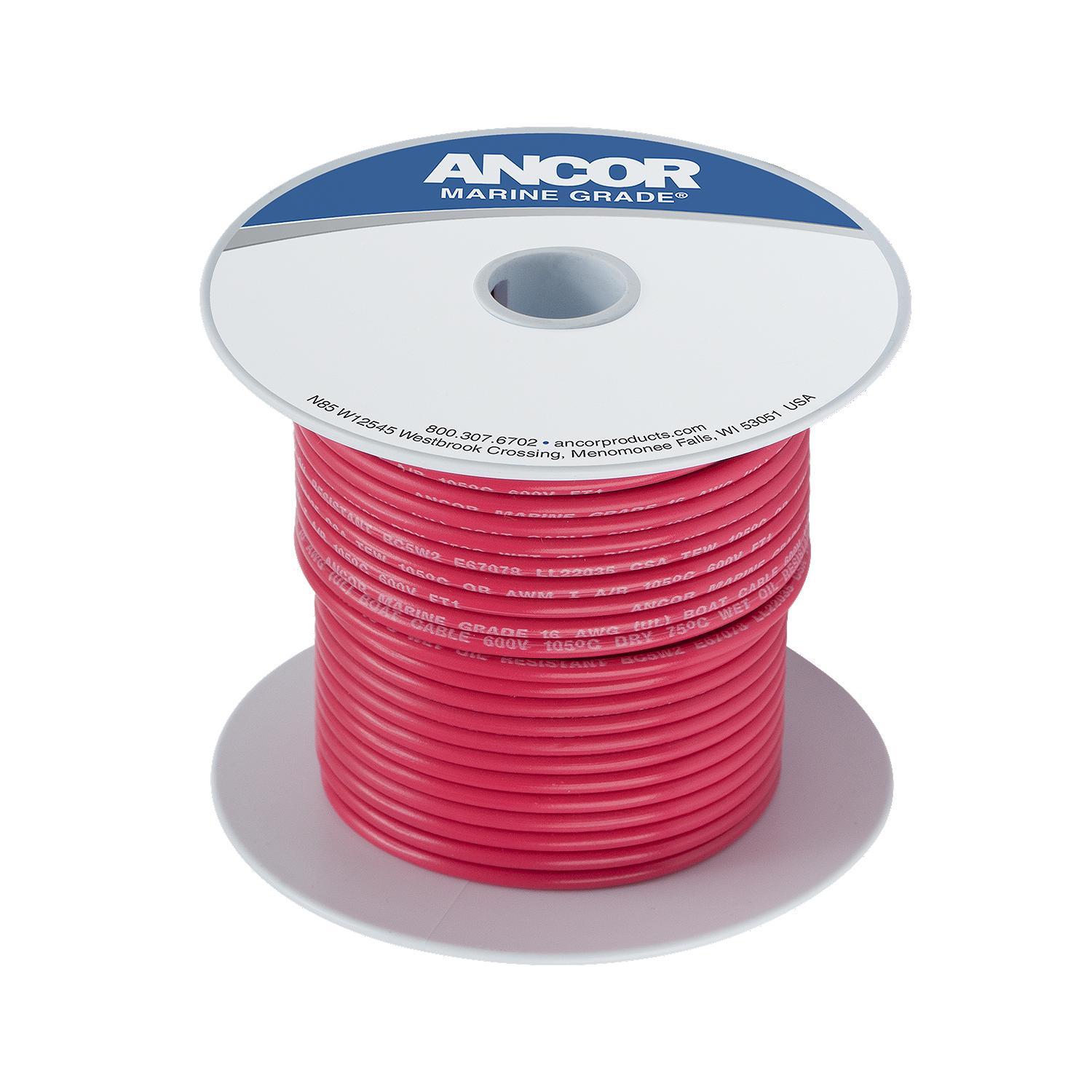

Ancor #14 Red 100ft Spool Tinned Copper

Part Number: 104810

$55.21; $55.21
Unit price: per

Select a preference above. Final pickup or shipping method is confirmed at checkout.

Ancor Tinned Copper Wire, 14 AWG (2mm2), Red - 100ft
Model: 104810

Ancor Marine Grade wire products are the longest lasting and most rugged available, exceeding UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46) standards. They are constructed with premium vinyl insulation that is rated at 600 volts, 105 deg C dry and 75 deg C wet, stays flexible even in extreme cold (-40 deg F/C) and resists salt water, battery acid, oil, gasoline, heat, abrasion and ultra-violet radiation. Highest quality ultra flexible (Type 3) tinned copper stranding provides maximum protection against corrosion and electrolysis while resisting fatigue due to vibration and flexing.

Specifications

Wire Gauge	14 AWG
Color	Red
Length	100 ft
Conductor	Tinned copper, Type 3 ultra flexible stranding
Stranding	41 strands of 30 AWG
Nominal O.D.	9/64" (3.6 mm)
Wire Diameter	2.0 mm
Minimum Bend Radius	1-3/32" (2.8 cm)
Circular Mil Area	4,100
Cross-Sectional Area	2.08 mm²
Resistance	2.53 ohms per 1000 ft
Weight per 1000 ft	23 lbs (10.4 kg)
Voltage Rating	600V
Temperature Rating	221°F / 105°C dry, 167°F / 75°C wet
Cold Flexibility	Stays flexible to -40°F / -40°C
Standards	Exceeds UL 1426, ABYC and US Coast Guard Charter boat (CFR Title 46)

Ancor #14 Red 100ft Spool Tinned Copper

$55.21

Quantity:

Ancor #14 Red 100ft Spool Tinned Copper

$55.21
