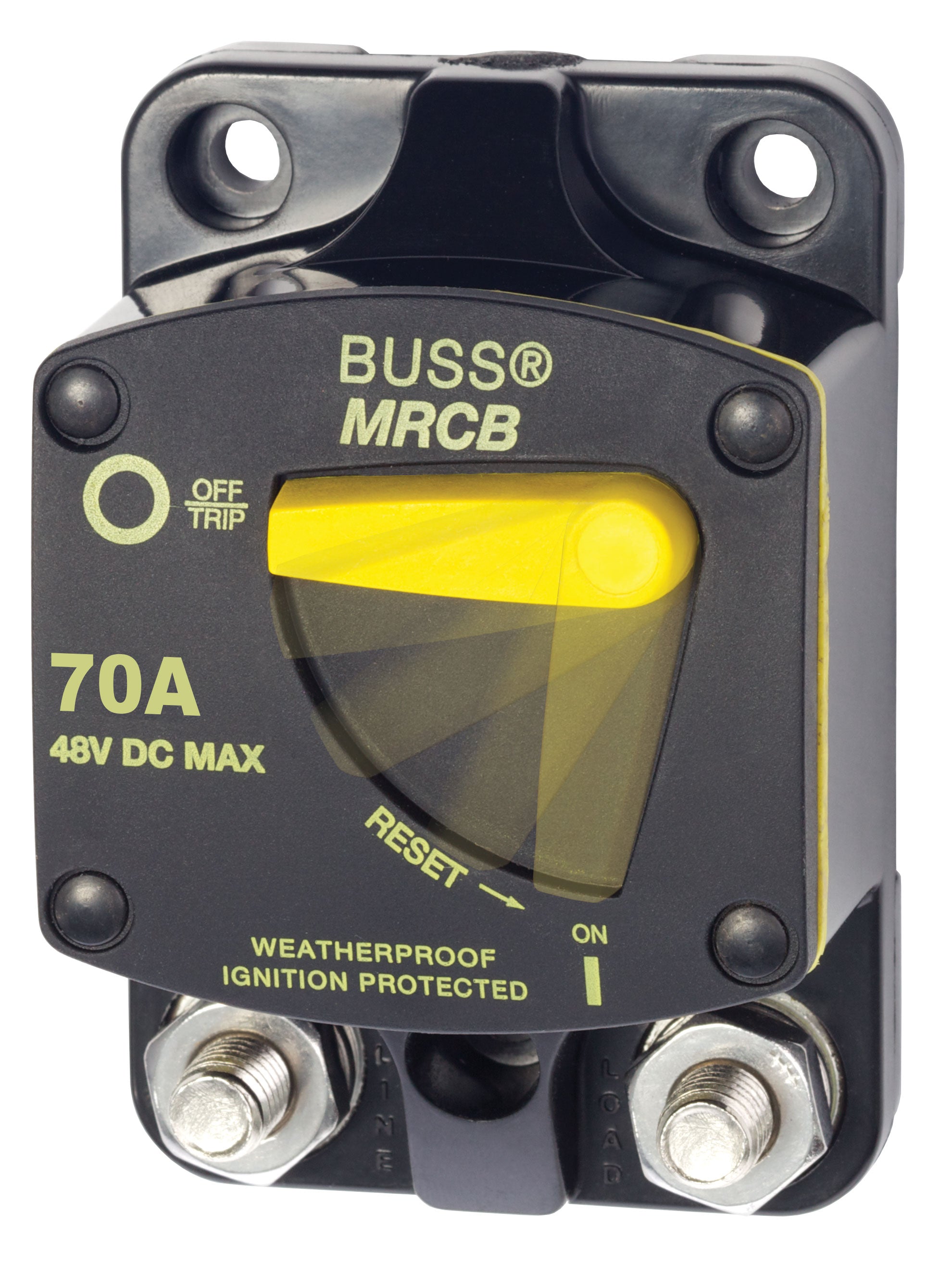

Blue Sea 187-Series 70 Amp Circuit Breaker Surface Mount
Select a preference above. Final pickup or shipping method is confirmed at checkout.
Blue Sea Systems 187-Series Circuit Breaker - Surface Mount 70A
Model: 7141-BSS* Do not use as a switch where high inrush currents are expected.
Specifications| Amperage | 70A |
| Maximum Voltage | 48vDC |
| Mounting | Surface Mount |
| Circuit Breaker Type | Thermally responsive Bi-metal blade |
| Terminal Stud Torque | 75 in-lb (8.47 Nm) |
| Interrupt Capacity | 5000A @ 12V 3000A @ 24V 1500A @ 42V |
| Minimum Operating Temperature | -40° C |
| Maximum Operating Temperature | 85° C |
| Case Material | Thermoset Polyester |
| Circuit Breaker Class | Type III - switchable/manual reset - trip free |
| Mounting Hole | Accept #10 (M5) Screw |
| Terminal Stud Size | 5/16" - 18 |
