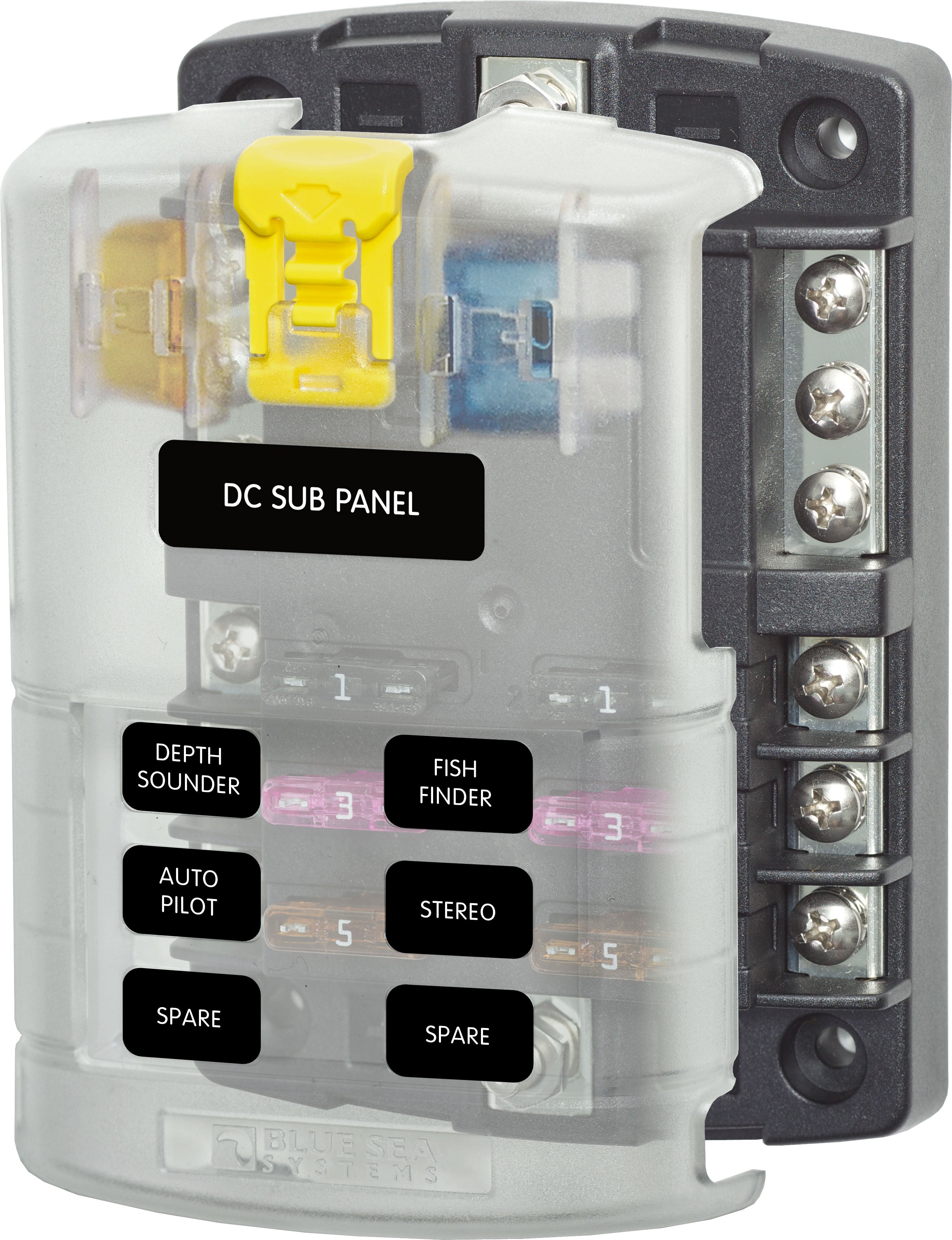

Blue Sea 5025 6-Gang Fuse Block ST ATO/ATC Negative Bus and Cover
Select a preference above. Final pickup or shipping method is confirmed at checkout.
Blue Sea Systems ST Blade Fuse Block - 6 Circuits with Negative Bus and Cover
Model: 5025The ST Blade Fuse Block can offer a space saving and cost effective solution to adding circuit protection when there are limited available circuit breakers on the distribution panel. A single circuit breaker on a distribution panel can provide the circuit protection for the feed wire to the ST Blade Fuse Block. This is frequently done for electronics that each have their own ON-OFF switch and don’t require the switching offered by a circuit breaker. The 6 or 12 position ST Blade Fuse Block then provides a consolidated location for fuses for each of the electronics.
Specifications| Circuits | 6 |
| Maximum Amperage | 100A per block 30A per circuit |
| Maximum Voltage | 32V DC |
| Mounting | #8 Screw (M4) |
| Negative Bus | #10-32 Stud |
| Positive Bus | #10-32 Stud |
| Recommended Torque | 24 in-lb (2.71 N m) |
| Screw Terminal Torque | 18 in-lb (2.03 Nm) |
| Screw Terminal Type | #8-32 Screws with captive star lock washer |
| Weight | 0.55lb (0.25 kg) |
| Dimensions | 4.894" h x 3.315" w x 1.518" d |
