SKU:
010-03386-02
- $6,299.99
- $6,299.99
- Unit price
- per
Orders over $100 ship free. Orders under $100 ship for $7.99.
Couldn't load pickup availability

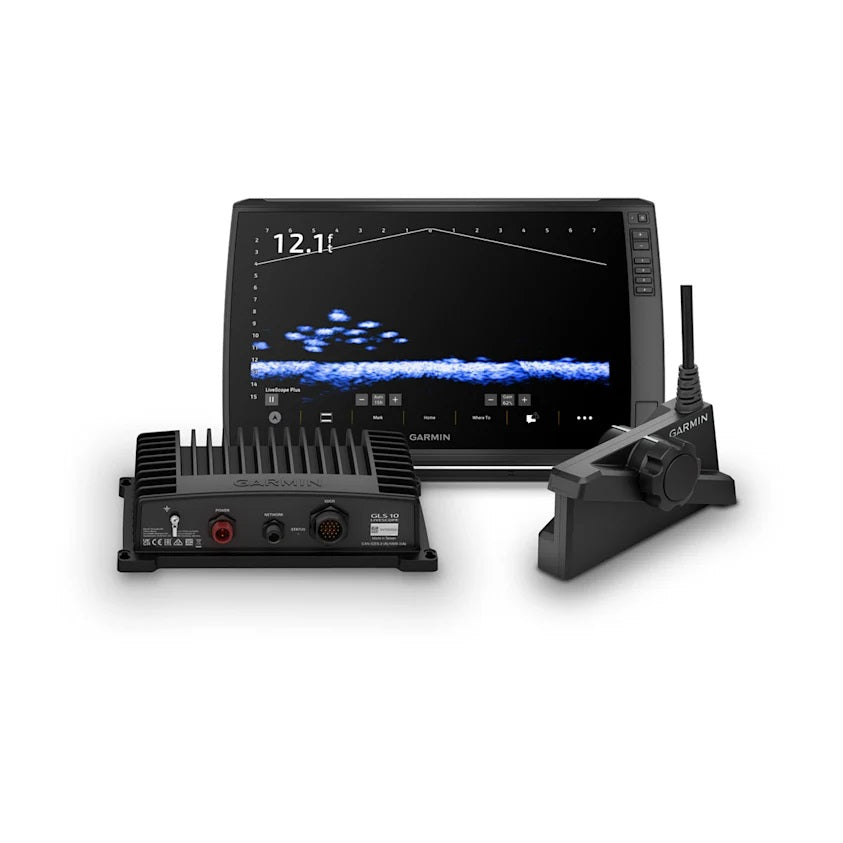

Garmin ECHOMAP Ultra 2 166sv ICE House System WITH ICE House System
Model: 010-03386-02- 16-INCH FULL HD IPS TOUCHSCREEN DISPLAY
- SHARE TO YOUR TV OR EXTERNAL DISPLAY VIA HDMI OUTPUT
- LIVESCOPE™ FORWARD AND LIVESCOPE™ DOWN MODES
- PRELOADED WITH GARMIN NAVIONICS+™ MAPPING OF 25,000+ INLAND AND COASTAL LAKES
Upgrade your on-ice experience with the ECHOMAP Ultra 2 16-inch chartplotter, LiveScope Plus System and everything else you’d want to help you catch more fish.
ECHOMAP ULTRA 2 16-INCH: This chartplotter features a 16-inch full HD IPS display with touchscreen, mapping and HDMI output, so you can display sonar on your TV or external display.
ICE HOUSE SYSTEM: Get a GLS™ 10 sonar black box with swivel pole mount and an LVS34-IF transducer, which features a transducer cable that stays flexible — even in freezing conditions.
LIVESCOPE MODES: With an included 0-degree pole mount, the transducer can quickly switch between LiveScope Forward and LiveScope Down modes to adapt to your fishing technique.
GARMIN NAVIONICS+ MAPPING: Get coverage for more than 25,000 lakes with preloaded coastal and inland mapping.
CUSTOM COMBOS: Create custom pages that combine sonar and maps on your display.
BUILT-IN SONAR: See below and around your boat with built-in sonar capabilities, whether you’re on the ice or the open water.
Specifications| General | |
| Dimension | 16.9" x 10.5" x 3.14" (43.0 x 26.6 x 8.0 cm) |
| Weight | 9.5 lbs (4.31 kg) |
| Water rating | IPX7 |
| Touchscreen | Yes |
| Display Type | FHD, IPS |
| Display Size | 13.6" x 7.7"; 15.6" diagonal (34.5 cm x 19.5 cm; 39.7 cm diagonal) |
| Display resolution | 1920 x 1080 pixels |
| Input | Touchscreen with Keyed Assist |
| Maps & Memory | |
| Accepts Data Cards | 2 microSD cards |
| Waypoints | 5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
| Ice Fishing Details | |
| Included transducer | LiveScope Plus System with LVS34-IF |
| Transducer holding feature | Pole mount |
| Sonar Features | |
| Power output | 600 W |
| Traditional sonar (dual frequency/beam) | Built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVu | Built-in 260/455/800/1000/1200 kHz |
| SideVu | Built-in 260/455/800/1000/1200 kHz |
| Panoptix™ sonar | Yes |
| LiveScope | Yes |
| Connections | |
| NMEA 2000® ports | 1 |
| Video output ports | 1 HDMI |
| Garmin Marine Network Ports | 2 |
| 12-pin transducer ports | 12-pin scanning sonar |
| Bluetooth pairing | Yes |
| ANT (Connectivity) | Yes |
| Garmin Wi-Fi network (local connection) | Yes |
| Input Voltage | 9 to 18 Vdc |
What's in the Box:
- ECHOMAP™ Ultra 2 166sv with preloaded Garmin Navionics+™ Inland, Coastal and Offshore Mapping for U.S. or Canada
- LiveScope™ Plus LVS34-IF transducer
- GLS™ 10 black box sonar module with power and network cables
- Ice fishing pole mount
- 0° shaft mount
- Power and network cables
- Hardware
- Documentation
