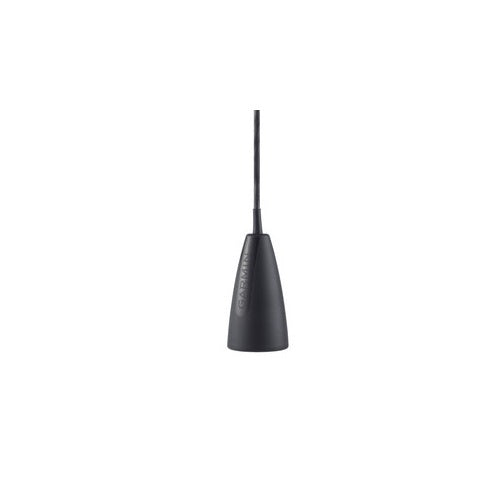

Garmin Gt8hw-if Ice Transducer

by Garmin
Original price $129.99 - Original price $129.99
Original price
$129.99
$129.99 - $129.99
Current price $129.99

Description

Garmin GT8HW-IF Ice Fishing, Plastic, High Wide CHIRP Transducer (150-240 kHz, 250W) (4-pin)

Model: 010-12401-20
UPC: 753759148560

GT8HW-IF transducer is perfect for ice fishermen who want clear bottom definition under the ice as well as crisp, clear and wide fish arches with excellent target separation. The wider beam width — up to 24 degree beam angle — provides a larger coverage area in the water.

The 4-pin transducer features high wide band CHIRP traditional sonar (150-240 kHz) and has a power rating of 250 W. Its shape and beam widths have been optimized for ice fishing and feature a silicon-coated cable that remains flexible in harsh winter conditions.

Specifications
Frequency CHIRP 145-240 kHz
Transmit power 250 W
Max Depth 800 feet
Beam Width (°) LF/HF (-3dB): 24/16
Read water Temperature Yes
Connect 4 pin
Cable Length 8 feet

What's in the Box:
  • GT8HW-IF transducer
  • Float
  • Documentation
