SKU:
12VCPS3
- $79.35
- $79.35
- Unit price
- per
Couldn't load pickup availability

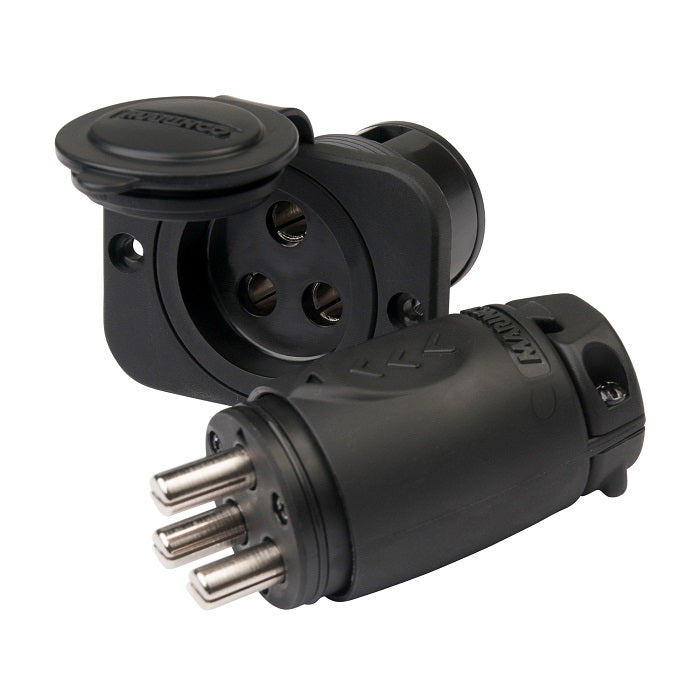

Marinco 70 amp Trolling Motor Plug and Receptacle
Model: 12VCPS3- 70A continuous rating
- Universal design for 2 or 3-wire configuration 12V, 24V, 12/24V, 24/36V, 36V or 48V systems
- Corrosion resistant, plated brass electrical components
- Receptacle contains watertight sealing cap
- Plug contains Integrated strain relief and keyed design with thumbprint locator
- Accepts up to 6 AWG wire
70A plug and receptacle for modern trolling motors in a compact, waterproof footprint. The plug features an integrated strain relief and thumbprint locator to mate with the keyed receptacle.
Specifications| Plug | |
| Maximum Amperage | 70A (12V and 24V) 60A (36V and 48V |
| Voltage | 12V, 24V, 12/24V, 36V, 24/36V, & 48V |
| Wire | 2 or 3 |
| Gender | Male |
| Terminals | Double Set Screw w/ferrule |
| Wire Size | 8AWG and 6AWG |
| Receptacle | |
| Maximum Amperage | 70A (12V and 24V) 60A (36V and 48V |
| VoltageVoltageVoltageVoltageVoltageVoltageVoltage | 12V, 24V, 12/24V, 36V, 24/36V, & 48V |
| Wire | 2 or 3 |
| Gender | Female |
| Terminals | Double Set Screw w/ferrule |
| Mounting Hole size | 1.75" |
| Mounting Thickness | 1" Max |
| Material Specifications | |
| Body | Nylon |
| Contacts | Nickle Plated Brass |
| Terminal Screws | Nickle Plated Brass |
What's in the Box:
- 12VBPS3 70A Plug
- 12VBRS3 70A Receptacle
